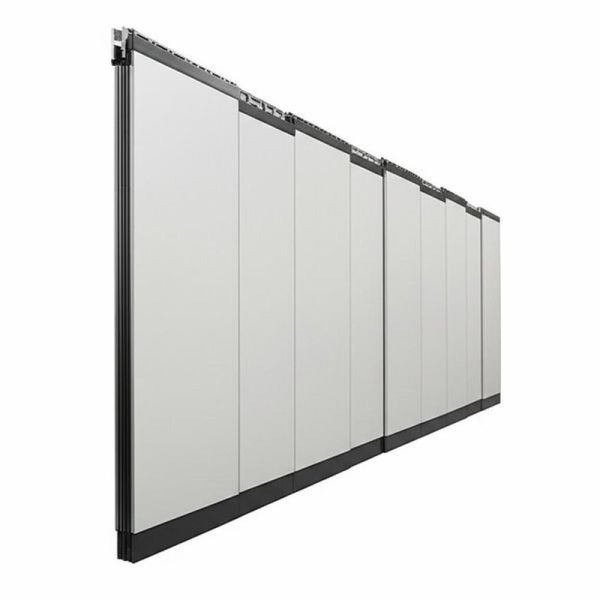

Exhibition Hall Office Acoustic Partition Wall Folding Operable
An acoustic wall partition is a versatile solution for dividing
spaces, allowing you to easily transform a large area into smaller
rooms or expand a small space as needed. It combines the
functionality of a standard wall with the flexibility of an
operable partition, making it ideal for multi-purpose environments.
These partitions are designed for straightforward installation and
offer dependable performance. They are manufactured with industrial
precision and prioritize safety with features like fire resistance
and eco-friendly materials.
Acoustic Partition Wall&Feature:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of
panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction
and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Allow Customization.
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC
machining
3. Unique and patented wheel surface and shape make the whole
movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior
durability
4 Top & bottom jack lifting mechanism seal are with power of 800N.
Magnetic seal in concave & convex profile has magnetic attraction
of 40N/m.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in
Rw (dB):52/56
Positive and frictional locking of the vertical element
connections: Convex-concave profile form, force of attraction of
the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details
regarding the element heights/element
widths indicated can only be confirmed following consultation with
the Design Department.
** Depending on the sound insulation/weight |
