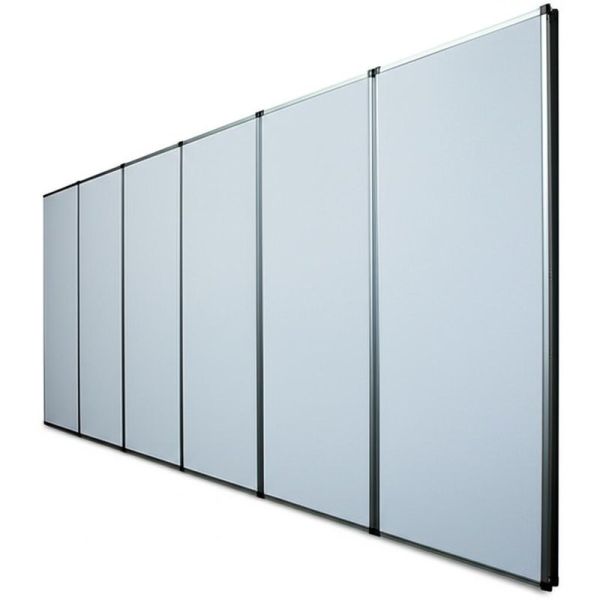

Functional Design Acoustic Partition Wall with decorative finishes
for Offices
Our functional design movable partitions offer efficient space
utilization. Whether in an office, retail space, or home, these
partitions help you make the most of your interior.
One of the key features of this operable partition is its ease of
use. No special apparatus or tools are required to operate the
partition—only a simple operating handle is needed. This handle is
used to engage the top and bottom mechanical seals, which are
essential for acoustically sealing off the panels. This
straightforward process ensures that the partition provides
effective sound insulation when in place.
We have full confidence in achieving your quality level, Hear are
the brief introduction of our advantages as follows:
1.Product specifications and value-engineered alternatives
2.Delivery time control for decent orders
3.Increase the Longevity of Your Specialty Products
4.Fast response and flexibility to construction related issues
5.German Partition Technology Global Professional Space Solutions
6.The performance of the product is certified by SGS & ILAC-MRA
7.Your inquiry related to our products or prices will be in 24
hours
8.Well-trained and experienced staffs to answer all your inquiries
in Fluent English
9.We can follow your design to produce
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC
machining
3. Unique and patented wheel surface and shape make the whole
movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior
durability
4 Top & bottom jack lifting mechanism seal are with power of 800N.
Magnetic seal in concave & convex profile has magnetic attraction
of 40N/m.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in
Rw (dB):52/56
Positive and frictional locking of the vertical element
connections: Convex-concave profile form, force of attraction of
the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details
regarding the element heights/element
widths indicated can only be confirmed following consultation with
the Design Department.
** Depending on the sound insulation/weight |
