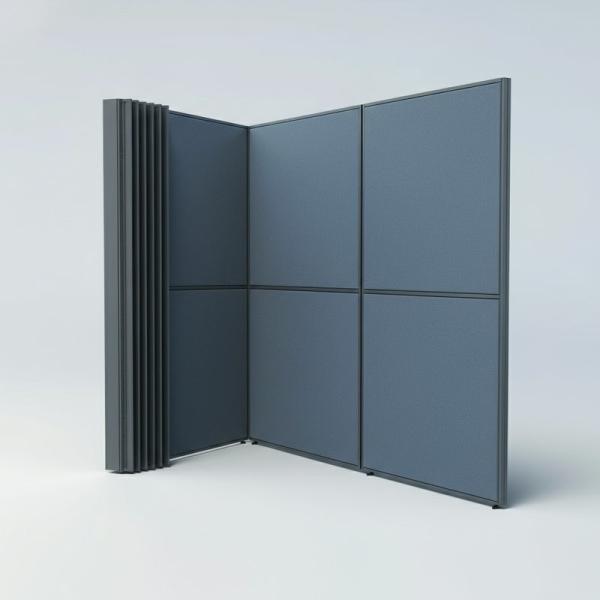

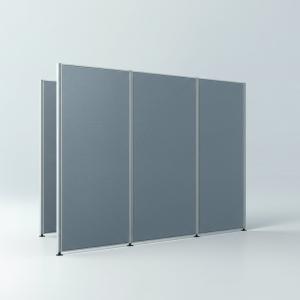

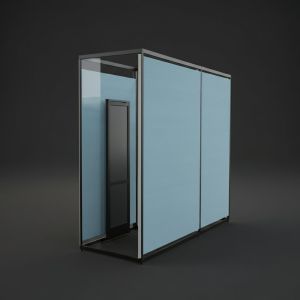

Operable Partition Wall System with Easy Manual Operation and
Multiple Panels
The Operable Partition Wall System is designed for easy manual
operation, featuring multiple panels that move smoothly into place.
This system provides flexibility and convenience, allowing you to
effortlessly reconfigure your space while ensuring effective
partitioning and sound control.
What we offer:
1) German Partition Technology Global Professional Space Solutions
2) Highly competitive prices
3) Good quality control
4) Well-trained and experienced staffs to answer all your inquiries
in Fluent English
5) state-of-art technology products
5) Experience in doing project with heavy customers
6) Delivery time control for decent orders
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC
machining
3. Unique and patented wheel surface and shape make the whole
movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior
durability
4 Top & bottom jack lifting mechanism seal are with power of 800N.
Magnetic seal in concave & convex profile has magnetic attraction
of 40N/m.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in
Rw (dB):52/56
Positive and frictional locking of the vertical element
connections: Convex-concave profile form, force of attraction of
the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details
regarding the element heights/element
widths indicated can only be confirmed following consultation with
the Design Department.
** Depending on the sound insulation/weight |
